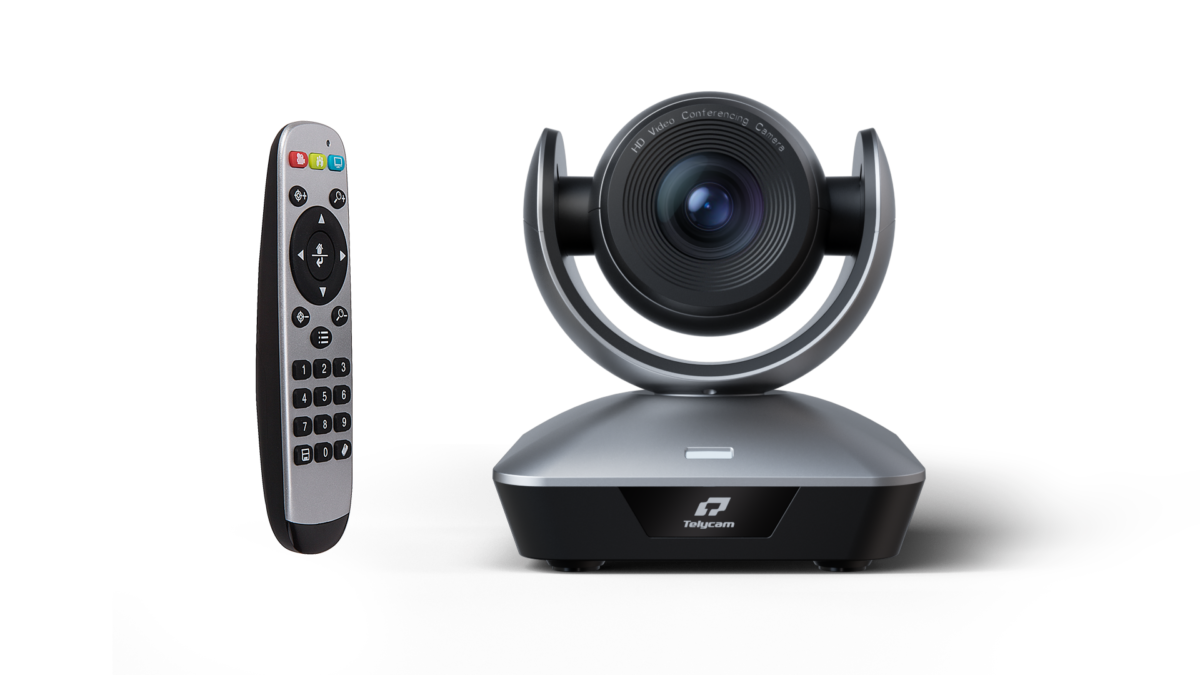

Camera
• TLC -1000-HU2-10
• 1/2.8 inch, 2.4MP CMOS Panasonic sensor
• 10X optical zoom + 12X digital zoom
• Lens: f= 4.7~47mm, F1.6~3.0
• Horizontal View Angle: 62.5°(wide)~6.43°(tele)
• Vertical Viewing Angle: 40.1°~4.1°
• Diagonal Viewing Angle: 69.7°~7.56°
• Minimum Working Distance: Wide: 0.5m; Tele: 1m
• S/N Ratio: ≥50dB
Image Parameters
• Noise Reduction: 2D&3D
• Minimum lux: 0.7lux(50 IRE Max AGC, 1/30, F1.8)
• White Balance: Auto/Manual/Indoor/
Outdoor/C.T. /PUSH
• Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
• Anti-Flicker: OFF, 50Hz, 60Hz
• Image Flip: Supported
• Mirroring: Supported
• Focus: Auto/Manual
• Iris: Auto/Manual
• Electronic shutter: Auto/Manual
• Gamma: Supported
• WDR: Supported
Video Format
HDMI:
1920*1080P60/59.94/50/30/29.97/25/24;
1920*1080I60/59.94/50;
1280*720P60/59.94/50/30/29.97/25
USB 2.0 Type-C:
MJPG:
1920*1080P60;
1280*960P60;
1280*720P60;
1024*768P60;
800*600P60;
640*480P30;
320*240P60
YUY2:
640*480P30;
320*240P30
Pan/Tilt Movement
• Preset: Remote controller: 10; Serial port: 128; Accuracy: 0.1°
• Pan Rotation Angle: -170°~+170°
• Tilt Rotation Angle: -30°~+90°
• Pan Rotation Speed: 0.1°~120°/s
• Tilt Rotation Speed: 0.1°~80°/s
General
Input Voltage: 5V 1000mA(via USB type C)/DC: 12V 2A(via Power Adapter)
Power Consumption: DC: 12V 2A(Pmax=7W)
Operating Temperature: -10℃~50℃
Operating Humidity: ≤80%
Color: Silver
Dimension(LxWxH): 148mmx132mmx162mm
Net Weight: 0.9kg(2LBS)
Accessory: Power adapter, Power cable, 3m USB Type-C cable, manual, warranty card
