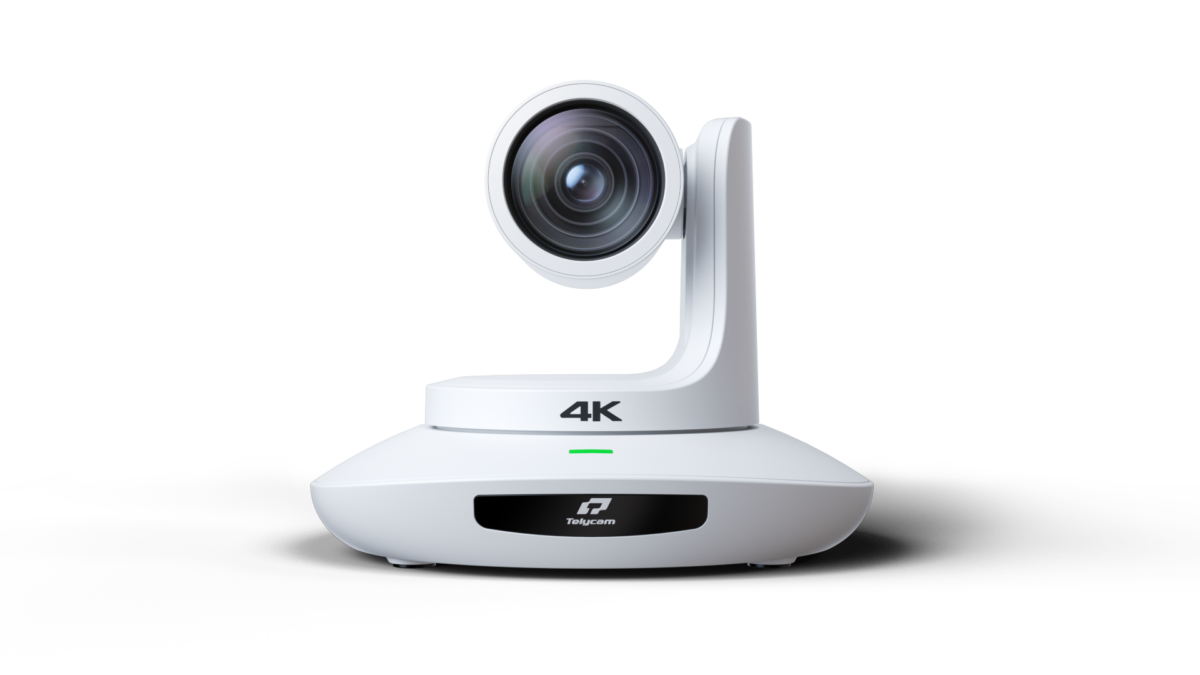

Vision+ 4KN 12x
• Part NO. TLC-300-IP-12-4K(NDI)-AB
• 1/2.8 inch,
9MP UHD CMOS sensor
• 12X optical zoom
• Lens: f=3.4mm~40.3 mm,
F1.8~F3.6
• Horizontal View Angle: 80.5°(Wide)~7.6°(Tele)
• Vertical Viewing Angle: 50.0°~4.4°
• Diagonal Viewing Angle: 88.9°~8.7°
• Minimum Working Distance: 1.0m
• S/N Ratio: ≥50dB
Vision+ 4KN 20x
• Part NO. TLC-700-IP-20-4K(NDI)-AB
• 1/1.8 inch,
9MP UHD CMOS sensor
• 20X optical zoom
• Lens: f=6.25mm~112.5 mm,
F1.58~F3.95
• Horizontal View Angle: 61°(Wide)~3.5°(Tele)
• Vertical Viewing Angle: 34.1°~1.9°
• Diagonal Viewing Angle: 60.7°~3.5°
• Minimum Working Distance: 1.0m
• S/N Ratio: ≥50dB
Vision+ 4KN 30x
• Part NO. TLC-700-IP-30-4K(NDI)-AB
• 1/1.8 inch,
9MP UHD CMOS sensor
• 30X optical zoom
• Lens: f= 6.91~214.64mm,
F1.35~F4.6
• Horizontal View Angle: 63°(Wide)~2.1°(Tele)
• Vertical Viewing Angle: 34.14°~1.12°
• Diagonal Viewing Angle: 67.08°~2.27°
• Minimum Working Distance: 1.5m
• S/N Ratio: ≥50dB
Video Format
HDMI2.0:
3840*2160P60/59.94/50/30/29.97/25；
1920*1080P60/59.94/50/30/29.97/
25/24/23.98;
1920*1080I60/59.94/50;
1280*720P60/59.94/50/30/29.97/25
NDI®HX3:
Main Stream: 3840*2160P15~60; 1920*1080P15~60;
1280*720P15~60; 1024*576P15~60;
Sub Stream: 640*360P15~30
3G-SDI:
1920*1080P60/59.94/50/30/
29.97/25/24/23.98;
1920*1080I60/59.94/50;
1280*720P60/59.94/50/30/
29.97/25
USB Type-C:
NV12: 1920*1080P5;1280*720P15;
1024*576P25;
800*448P30;
YUYV: 1920*1080P5;1280*720P15;1024*576P25;
800*448P30;
MJPG: 3840*2160P30;1920*1080P60;
1280*720P60;1024*576P60;800*448P60;
H264/H265:3840*2160P30;1920*1080P60;
1280*720P60;1024*576P60;800*448P60
Image Parameters
• Noise Reduction: 2D&3D
Minimum lux:
12X: 0.5Lux (50 IRE Max AGC, 1/30, F1.8)
20X: 0.5Lux (50 IRE Max AGC, 1/30, F1.8)
30X: 0.5Lux (50 IRE Max AGC, 1/30, F1.8)
• White Balance: Auto/Manual/ATW/Push/
Indoor/Outdoor/Color Temperature
• Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
• Anti-Flicker: OFF, 50Hz, 60Hz
• Image Flip: Supported
• Mirroring: Supported
• Focus: Auto/Manual
• Iris: Auto/Manual
• Electronic-shutter: Auto/Manual
IP Streaming
• Video Encoding: H.264/H.265
• Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
• Bitrate Range: 1024Kbps~122800Kbps
• Network Port Speed: 1000M
• Protocol: NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC
Pan/Tilt Movement
Preset: Remote controller: 10; Serial port: 256; Accuracy: 0.1°
Pan Rotation Angle: -176° ~+176°
Tilt Rotation Angle: -30° ~+90°
Pan Rotation Speed:
12X: 0.1°~120°/s
20X: 0.1°~80°/s
30X: 0.1~80°/s
Tilt Rotation Speed:
12X: 0.1°~80°/s
20X: 0.1°~60°/s
30X: 0.1°~60°/s
I/O Interface
• Control Port: RS232(RS485), NDI®HX3
• Video Port: NDI®HX3, HDMI 2.0, 3G-SDl, USB Type-C
• Audio Port: stereo 3.5mm linear inputs
• Tally: Supported
• POE+: Supported
• Daisy Chain: Supported
General
• Input Voltage: DC12V, POE+(IEEE802.3at)
• Operating Temperature: -10℃~50℃
• Operating Humidity: ≤80%
Dimension(L×W×H):
12X: 220mmx190mmx173mm
20X:220mm×190mm×193.5mm
30X: 220mm×190mm×193.5mm
Net Weight:
12X: 1.5kg(3.3LBS)
20X: 1.9kg(4.2LBS)
30X: 1.9kg(4.2LBS)
Color: Black/White
