Camera
• Part NO. TLC-600-IP-20-4K(NDI)-AB
• 1/1.8-inch, 9MP UHD CMOS sensor
• 20X optical zoom
• Lens: f = 6.25mm ~ 112.5mm, F1.58 ~ F3.96
• Horizontal View Angle: 61° (Wide) ~ 3.5° (Tele)
• Vertical Viewing Angle: 34.1°~1.9°
• Diagonal Viewing Angle: 60.7°~3.5°
• Minimum Working Distance: 1.0m
• S/N Ratio: ≥50dB
Image Parameters
• Noise Reduction: 2D&3D
• Minimum lux: 0.5Lux(50 IRE Max AGC, 1/30, F1.8)
• White Balance: Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Color Temperature
• Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
• Anti-Flicker: OFF, 50Hz, 60Hz
• Image Flip/Mirroring: Support
• Focus/Iris/Electronic-shutter: Auto/Manual
• Gamma: Support
• Backlight Compensation: Support
Video Format
HDMI2.0：
3840*2160P60/59.94/50/30/29.97/25
1920*1080P60/59.94/50/30/29.97/25/
24/23.98 ; 1920*1080I60/59.94/50 ; 1280*720P60/59.94/50/30/29.97/25
NDI®|HX3：
Main Stream:
3840*2160P15~60; 1920*1080P15~60; 1280*720P15~60; 1024*576P15~60
Sub Stream (CROP):
1920*1080P15~30; 1280*720P15~30; 1024*576P15~30;640*360P15~30;
USB Type-C：
NV12：1920*1080P5; 1280*720P10; 1024*576P15; 800*448P30
YUYV：1920*1080P5; 1280*720P10; 1024*576P15; 800*448P20
MJPG：1920*1080P60; 1280*720P60; 1024*576P60;800*448P60
IP Streaming
• Video Encoding: H.264/H.265
• Bitrate Control: Variable bitrate(VBR), Constant bitrate(CBR)
• Bitrate Range: 1024Kbps~61440Kbps
• Network Port Speed: 1000M
• Protocol: NDI®HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, NTP, RTP Multicast, WebRTC

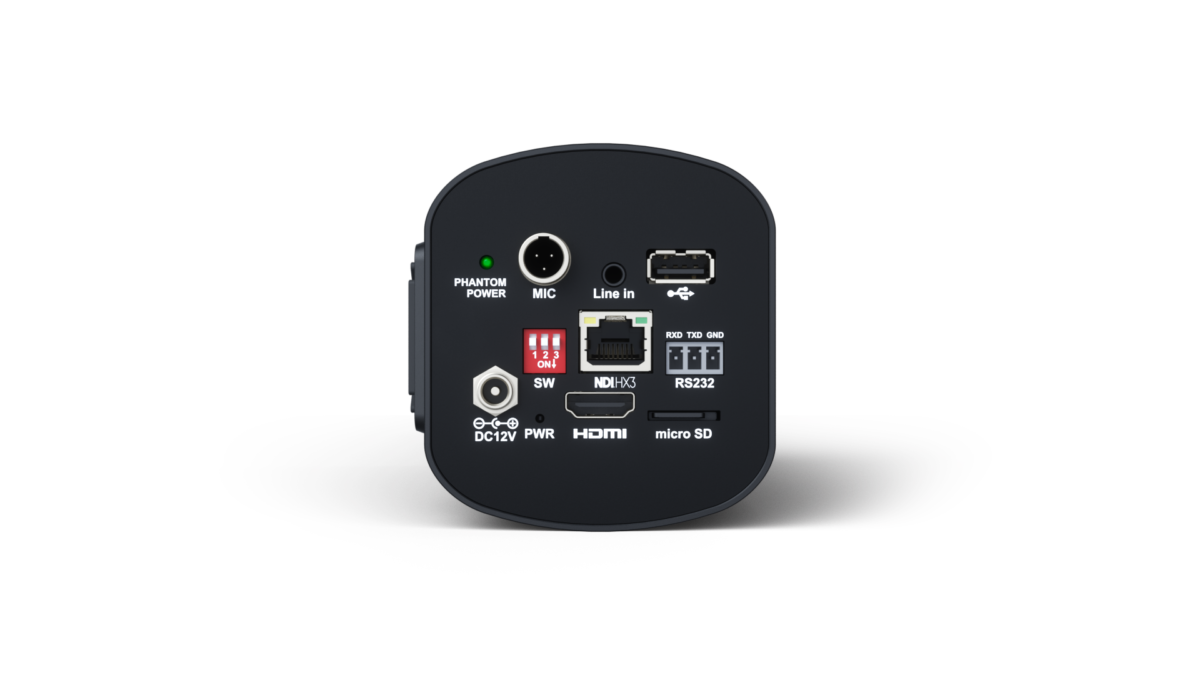

I/O Interface
• Control Port: RS232, RJ45
• Video Port: NDI®HX3, HDMI2.0, USB Type-C
• Audio Port: Stereo 3.5mm linear inputs, mini XLR
• Tally: Support
• POE+: Support
General
• Input Voltage: DC12V, POE+(IEEE802.3bt)
• Operating Temperature: -10℃~50℃
• Operating Humidity: ≤80%
• Dimension(L×W×H): 82mm×85.3mm×186.5mm
• Net Weight: 0.95kg(2.09LBS)
• Color: Black
